High Standard Video Fiber Optic Microscope 200X With 3.5 ” TFT -
LCD Display
Specifications
| Mainframe |
| Display | 3.5” TFT-LCD, 320 x 240 pixels |
| Dimensions | 170mm x 100mm x 40mm |
| Weigh(including battery) | 200g |
| Power Supply | Replaceable battery or universal input 5V DC adapter |
| Battery | Rechargeable Li-Ion, 3.7V / 1450mAh |
| Battery life | > 3 hours (continuous) |
| Charger/AC adapter | US, EU, UK and Australian versions available |
| Image / Video Storage | 8GB SD card |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -30°C to 70°C |

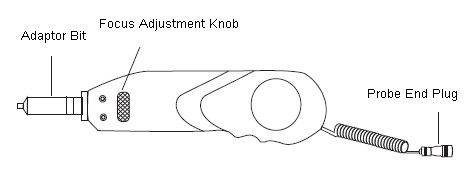

| Inspection Probe |
| Magnification | 400X |
| Detection Limit | 0.5μm |
| Focus Control | Manual , in-probe |
| Principle | Bright field reflected light microscopy |
| Dimensions | 180mm x 40mm x 30mm |
| Weight | 200g |
| Standard Accessories |
| Inspection Probe | x 1 |
| Mainframe | x 1 |
| AC power adapter/battery charger | x 1 |
| Rechargeable battery pack | x 1 |
| 2.5mm tip for PC male connectors | x 1 |
| 1.25mm tip for PC male connectors | x 1 |
| Tip for SC / FC PC female connectors | x 1 |
| Tip for LC PC female connectors | x 1 |
| Tip box | x 1 |
| User Manual | x 1 |
| Carrying case | x 1 |
| Optional Accessories |
| 2.5mm tip for APC male connectors |
| 1.25mm tip for APC male connectors |
| Tip for SC APC female connectors |
| Tip for FC APC female connectors |
| Tip for LC APC female connectors |
| AV-USB 2.0 Converter |
FAQ
Q1. Can I have a sample order
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new with new
order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
